Package include
Detroit Diesel Diagnostic Link DDDL 8.22 Professional + Troubleshooting Update 2025.7

Language
English

Installation and Activation
One computer Installation and activation

Compatible
Windows 10 pro 64 Bit  Windows 11 pro 64 Bit

Shipping Policy
Download link by high speed web server Total Download size 2.2 Gb

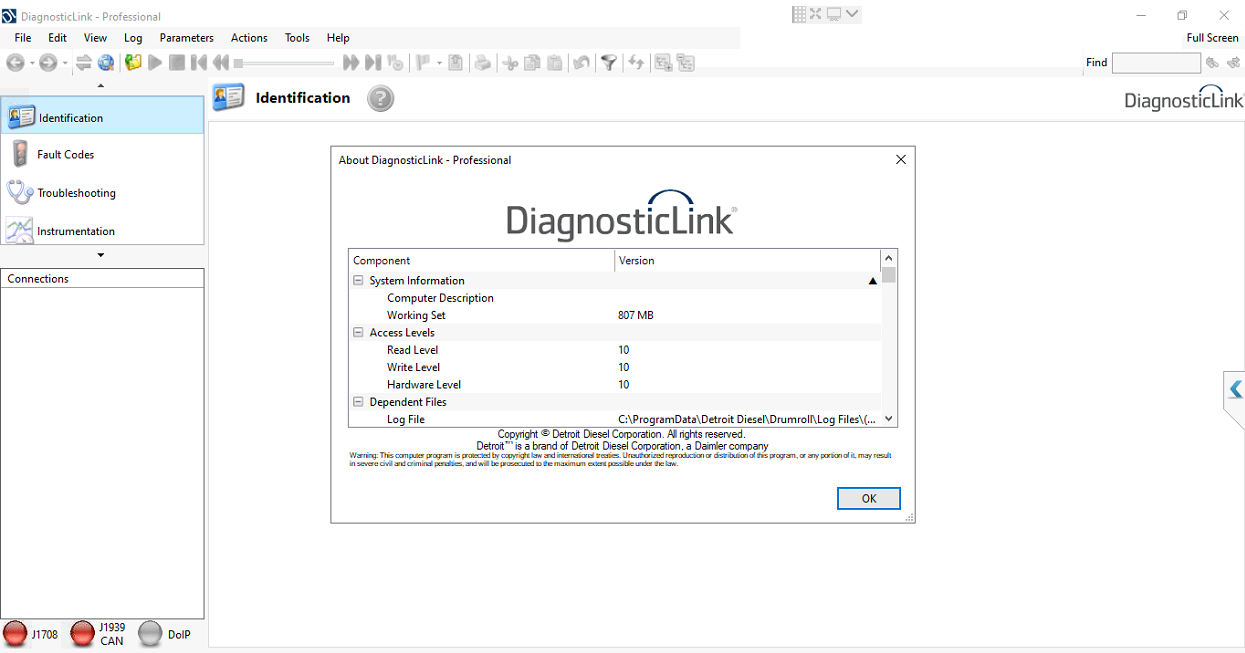

Access levels: 10/10/10

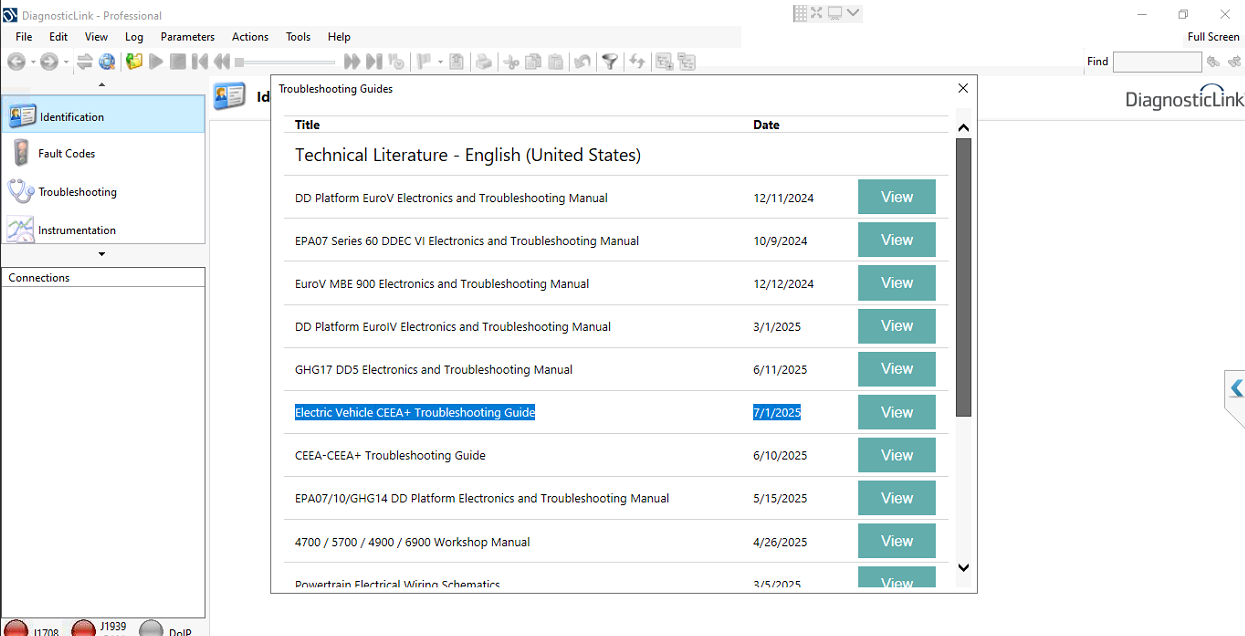

Troubleshooting update 2025.7

Overview

This a computer-based software used to perform diagnostics for Detroit and Freightliner Cascadia vehicle systems. The software works offline, so you don’t need an Internet connection. You don’t need to go to a physical store or wait for the package’s arrival



NEW DiagnosticLink 8.22 Features



DiagnosticLink® 8.22 Release Features Summary

2Service Diagnostics & Tools | 6/3/25
General Updates and Enhancements
▪ Support added for Dark Mode feature in DiagnosticLink application.
▪ Support added for CIAM OIDC integration in DiagnosticLink to support login to backend server systems
and connections to the subsystem (TechLane, CHEC, ZenZefi).
▪ Users are now allowed to fully sign out or re-login from the CIAM login.
▪ Links to sSAM wall chart are now provided.
▪ Parameter part numbers for selected items can be searched.

Fifth Gen Cascadia Features and Enhancements
▪ Support included to download and process the SMR-D and SMR-E content delivered from server
system for chassis ECUs.
▪ Support included for the Steering wheel sensor calibration panel for SAS02T and SAS03T

Fifth Gen Cascadia Features and Enhancements (cont.)

▪ Support added for special enhanced rights implementation to allow the diagnostic firewall configuration
parameter read for CGW05T.
▪ Support included for the auto-popup login screen if certificates need to be downloaded.
▪ Support included for the hardware replacement procedure for CGW05T in DiagnosticLink.
▪ Support added for the enhancement for the Detroit Maintenance System panel.
▪ Support added for the enhancement for the SBSP ESC Calibration panel.
▪ Support included for the ECP tester adjustment for ECP to workaround the CGW05T when Stmin!=0.
▪ Supported added for the parameter service name translations for the CPC502T ECU.
▪ Support included for the display of control list software version numbers for CPC502T on the
Identification panel:
▪ Application software part number
▪ HSM software part number
▪ Ethernet switch part number

Enhancements / Features included for eMobility vehicle support

▪ Support added for the HVAC control troubleshooting instrumentation panel for eM2.
▪ Support added for the BMS deeply discharged recovery service procedure panel.
▪ Support included for the enhanced eDrive Temperature and Speed panel.
▪ Added support for the Supervisory PTI ECU (PTISV101T, PTISV201T, PTISV301T).

Enhancements / Features included for ZF Transmission integration

▪ Improved the ZF ECU connection time.
▪ Support added for the Oil level check panel.
▪ Support added for the Roller Bench Dyno Diagnostics service routine diagnostic panel.
▪ Added enhancements to the STADA, Write Transmission, Engine-Transmission and Reset EEPROM
diagnostic panels.

Enhancements / Features included for FCCC eB2 vehicle support

▪ Support added for VCU03T auto connect.
▪ Support added for the Service Routine and Instrumentation Troubleshooting panels for VCU03T.

Detroit Diesel engines are very popular among the world’s leading manufacturers of trucks and cars, construction machinery, power and oil and gas equipment, etc.

ECUs Supported:
EPA07 – DD15, DD13, DD16, S60, MBE900, MBE4000
EPA10 – DD13, DD15, DD16
GHG14 – DD13, DD15, DD16, DT12 Transmission
Freightliner Cascadia
Western Star 5700XE

DiagnosticLink 8.0x Features:
Vehicle ECU software compatibility checking
Vehicle ECU Instrumentation and I/O control troubleshooting panels
Vehicle ECU Identification and Fault Code display
Display detected equipment in a user interface
New I/O control view reduces the number of tabs shown
The new display of Program Device settings
New VIM Throttle Panel for testing GHG14

System Requirements:
DiagnosticLink 8.0x is Windows 10 compatible:
DiagnosticLink 8 and legacy tools (DRS 6.30 and DDDL 6.50) are Windows 10 32-bit and 64-bit compatible.
Windows Vista SP2, Windows 7, Windows 8, 8.1, Windows 10 (32 & 64 bit)
2.0 GHz Dual Core Processor or faster
2.0 GB RAM or more
40 GB Hard drive with 20 Gigabyte free
Monitor and graphics card supporting 1024 x 768 resolution and 16-bit color
1 free USB
High Speed or Broadband Internet connection
IT Security Firewall Access for TCP Port 48481

DDDL is a professional diagnostic tool that enables users to do the following:

• get access to ECU information;
• read diagnostic fault codes for vehicles;
• run service routines;
• reprogram diesel equipment;
• perform all-system functional and injector cut-out tests;
• change parameters;
• perform engine calibration.
