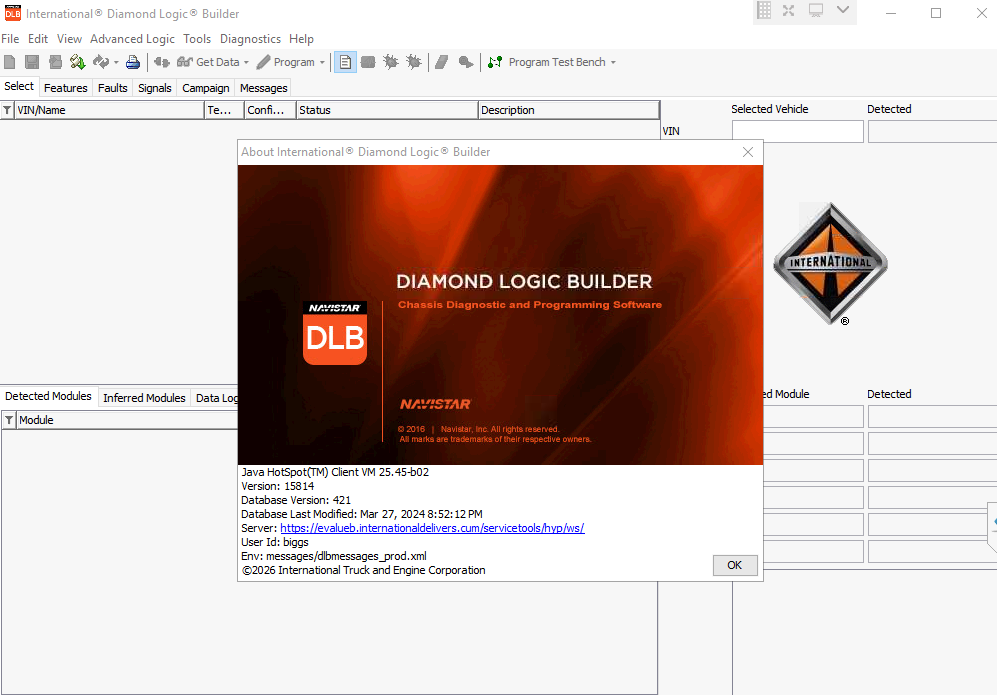

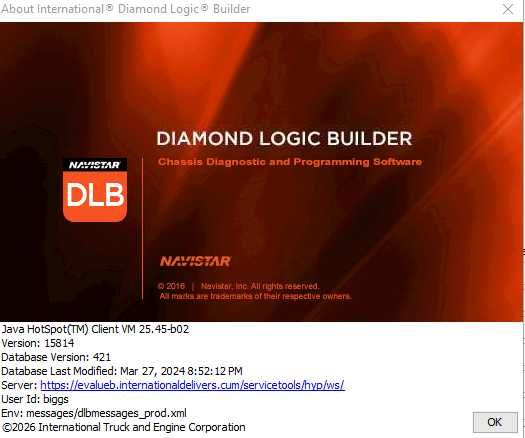

International Navistar Diamond Logic Builder (DLB) 2022 v15 Diagnostic & Programming Software
International Diamond Logic Builder (DLB) is the official OEM chassis diagnostic and programming software developed for International® Trucks and IC Bus® vehicles equipped with the Diamond Logic electrical system. It enables technicians, fleet maintenance professionals, and body builders to diagnose electrical systems, configure vehicle parameters, customize body controller functions, and program multiplex electrical features.
Whether you are installing new body equipment, troubleshooting electrical faults, configuring PTO functions, or programming custom vehicle options, Diamond Logic Builder provides dealer-level functionality for supported International vehicles.
Package Includes
- ✅ International Diamond Logic Builder (DLB 2022) v15
- ✅ Diamond Logic Builder 2022 Level 3 License
- ✅ All Parameters Unlocked
- ✅ All Programming Options Enabled
- ✅ Database Update 2024.03
- ✅ Installation Instructions
Main Features
- Read and clear Diagnostic Trouble Codes (DTCs)
- View live vehicle data and electrical parameters
- Program Diamond Logic body controller
- Configure programmable vehicle features
- Modify chassis parameters
- Configure PTO functions
- Customize switch assignments
- Configure warning lamps and outputs
- Monitor electrical inputs and outputs
- Graph live sensor data
- Vehicle controller diagnostics
- Body builder programming
- Electrical troubleshooting
- Automatic module detection
- OEM-level diagnostic capabilities
Supported Functions
- ✔ Electrical System Diagnostics
- ✔ Diamond Logic Programming
- ✔ Vehicle Configuration
- ✔ Body Controller Programming
- ✔ Multiplex Electrical System Configuration
- ✔ Switch Programming
- ✔ Relay Configuration
- ✔ Live Data Monitoring
- ✔ Parameter Editing
- ✔ Output Control
- ✔ Body Equipment Integration
- ✔ Fault Code Management
Compatible Vehicle Series
- International LT Series
- International RH Series
- International HV Series
- International MV Series
- International LoneStar
- International ProStar
- International TranStar
- International WorkStar
- International DuraStar
- International PayStar
- International 4200 / 4300 / 4400
- IC Bus Vehicles
Vehicle compatibility depends on model year and installed control modules.
Supported Communication Adapters
- NEXIQ USB-Link
- NEXIQ USB-Link 2
- NEXIQ USB-Link 3
- Dearborn DPA5
- Noregon DLA+
- Other RP1210 Compatible Interfaces
Operating System
- Windows 10 (64-bit)
- Windows 11 (64-bit)
Ideal For
- Truck Repair Workshops
- Fleet Maintenance Companies
- Diesel Mechanics
- Mobile Service Technicians
- Body Builders
- OEM Repair Facilities
- Fleet Owners
- Independent Repair Shops
Why Buy From KZMechanic?
- ✔ Genuine Professional Diagnostic Software
- ✔ Remote Installation Available
- ✔ Fast Digital Delivery
- ✔ Lifetime Technical Support
- ✔ Experienced Diesel Diagnostic Specialists
- ✔ Secure Download
- ✔ Professional After-Sales Assistance
Important Notice
This software is intended for professional diagnostic, maintenance, and programming purposes. A compatible RP1210 communication adapter is required for vehicle communication. Some programming functions may depend on vehicle configuration and hardware compatibility.
✔ Remote Installation Available
✔ Windows 10 & Windows 11 Compatible
✔ Professional Technical Support Included
