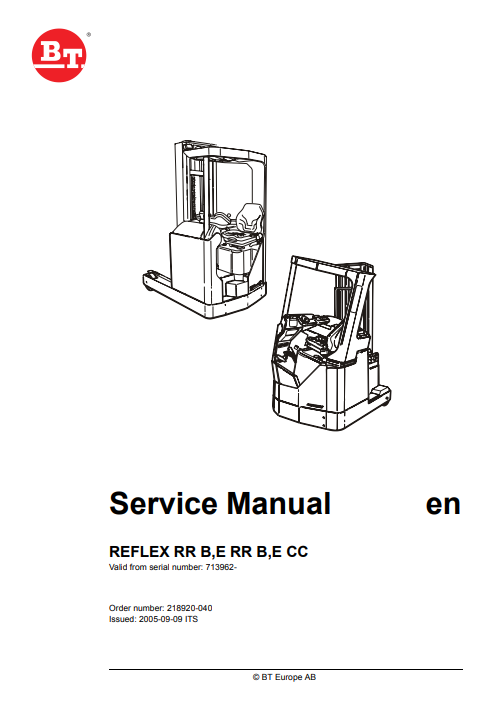

BT Forklift REFLEX RR B,E RR B,E CC Series Service Repair Manual

Package Include
BT Forklift REFLEX RR B,E RR B,E CC Series Service Repair Manual

Compatible Models and Serial Numbers :
RR B1-3 [S.N 713962-]
RR B1-3C [S.N 713962-]
RR B4-6 [S.N 713962-]
RR B4-6C [S.N 713962-]
RR B7-8 [S.N 713962-]
RR B7-8C [S.N 713962-]
RR E 1-3 [S.N 713962-]
RR E1-3C [S.N 713962-]
RR E4-6 [S.N 713962-]
RR E4-6C [S.N 713962-]
RR E7-8 [S.N 713962-]
RR E7-8C [S.N 713962-]
RR E2-3CC [S.N 713962-]
RR E4-6CC [S.N 713962-]
RR E7-8CC [S.N 713962-]
RR B2-3CC [S.N 713962-]
RR B4-5CC [S.N 713962-]
RR B7-8CC [S.N 713968-]

Language
English

Format
PDF

Total Number of pages
1-514

Publication Number
218920-040 – 2005-09-09 ITS

Compatible
All windows and mac systems

Additional Requirement
User needs to Install PDF Reader Software

Shipping Policy
Download link by high speed web server Total Download size 24 mb

Contents of this pdf service manual

General product information
Technical data
Introduction, maintenance
Preventive maintenance
Oil and grease specification
Cab heating/ventilation
Driver protection
Electric pump motor
Electric steering motor
Electric drive motor
Mechanical drive gear unit
Travel brake system
Travel brake system
Drive wheel
Fork/support arm wheel
Mechanical steering system
Steering angle sensor
Electrical system
Battery
Transistor panel
Electronic card
Hydraulics
Hydraulic pump
Hydraulic connections
Mast mounted hose reel
Main lift cylinder
Free lift cylinder
Reach cylinder
Tilt cylinder
Main mast
Main lift chain system
Lifting devices
Battery charger
Control/computer equipment
Extra warning lights/alarm
Positioning equipment
TV equipment
Truck log system, code lock
Extra equipment
Instructions for destruction
